Radar Coverage Tool Pro

Products » Tools and Downloads » Radar Coverage Tool Pro

Radar Coverage Tool Pro

Identify optimum positions for up to 10 radars with a visual display of the radar coverage and blind spots.

Buy Now

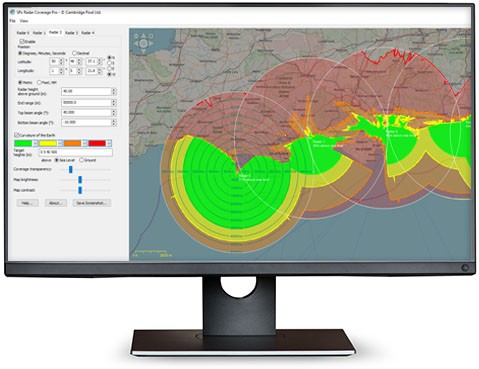

Radar Coverage Tool Pro
Radar Coverage Tool Pro

Uses Terrain Data, Selected Radar Location & Radar Parameters

Pro adds additional features like exporting coverage information to KML, for overlay on Google Earth etc.

Buy Now

SPx Radar Coverage Tool Pro uses a combination of terrain information and line-of-sight calculations to estimate the visibility of targets at given heights, as seen by radars at user-specified locations. Because the tool is using geometric line-of-sight calculations, the coverage map generated may equally apply to optical sensors located at the same sites.

This version of the tool is a licensed product which requires either a unique licence file to be installed on the host machine or a USB licence dongle to be connected to it. The price for a Radar Coverage Tool Pro licence is £500 (ex VAT), when supplied as a MAC address file. There is a £100 surcharge for the USB dongle option, which includes shipping but excludes local import duties and taxes. To purchase a copy of this software using a credit card, debit card or PayPal account, or to request a formal quotation, please complete the form below.”

Licence Type:

Please check your email and MAC address information is correct before proceeding.

Note that this is Windows software.



Software is not issued automatically on payment. We will respond to purchases same or next working day.

Radar Coverage Tool Pro Details

Extra Info

Pro Version

SPx Radar Coverage Tool Pro uses a combination of terrain information and line-of-sight calculations to estimate the visibility of targets at given heights, as seen by radars at user-specified locations. Because the tool is using geometric line-of-sight calculations, the coverage map generated may equally apply to optical sensors located at the same sites.

This version of the tool is a licensed product which requires either a unique licence file to be installed on the host machine or a USB licence dongle to be connected to it.  The price for a Radar Coverage Tool Pro licence is £500 (ex VAT), when supplied as a MAC address file. There is a £100 surcharge for the USB dongle option, which includes shipping but excludes local import duties and taxes.  To purchase a copy of this software using a credit card, debit card or PayPal account, or to request a formal quotation, please complete the form below.


Radar Coverage

Shuttle Radar Topography Mission (SRTM) terrain data is used to calculate the radar visibility. This dataset covers the whole world, with a resolution of approximately 90m for the version used in the free Radar Coverage Tool. The resolution of data used in the professional version is approximately 30m.  Additionally, the professional version of the software includes support for using DTED data files as the source of terrain data.  For even higher definition requirements, for example airport installations or camera security projects, a special version of the software is available that provides GeoTIFF data support.  Radar Coverage Tool Geo supports use of GeoTIFF digital surface model (DSM) data, which may have sub-metre elevation data spacing.  Please contact Cambridge Pixel for more information about this version.

The professional version allows radar coverage information to be calculated for up to 10 radar sites, simultaneously, and for the resultant coverage map to be exported to a KML file.  This enables the coverage map data to be displayed in third party GIS systems that support KML format, such as Google Earth.

Radar Parameters

The position and height of the radar are specified, together with the end range, top beam angle and bottom beam angle. Targets that would be above or below the beam are deemed not to be visible. The parameters for each of the radar objects may be set independently.

The units used to display heights and distances may be toggled between "Metric" (metres for height and distance) and "Feet, NM" (feet for height and nautical miles for distance).

Radar and Target Modelling

The SPx Radar Coverage Tool is not a modelling tool. It does not use target cross-section and radar characteristics to predict detection. It uses line-of-sight processing to consider whether a target is potentially visible to the radar based on the beam of the radar, height of the radar and target and presence of terrain.

Target Heights

Multiple target heights may be specified with each height being assigned a colour. The transparency of the first colour used is configurable, with the other colours being gradually more transparent as they represent higher target heights. The areas on the map shown in this colour are where targets at the associated height would be line-of-sight visible to the radar, and within the top and bottom beam angles. Target heights may be specified as above sea level or above local ground level.

Underlay Map

The SPx Radar Coverage tool displays coverage information overlaid on an OpenStreetMap view.  The professional version also includes support for SkyVector aeronautical chart display.  A snapshot of the current view may be saved to an image file using the "Save Screenshot…" button.

Features

New Features Added

Added support for simulated buildings, either manually defined or using Shapefiles.

  • Support for up to 10 simultaneous radar positions
  • Export coverage information to KML (e.g. for overlay on Google Earth)
  • Editable configuration file support
  • Setup Wizard
  • SRTM1 (~30m) terrain data
  • DTED terrain data support
  • GeoTIFF elevation data support (Radar Coverage Tool Geo - please consult factory)
  • Support for SkyVector aeronautical charts
  • No adverts
  • Easy selection of radar position:
    • Enter lat/long directly
    • Click on high-resolution map
  • Direct input of radar height
  • Map and terrain data downloaded from Internet as needed
  • Adjustable radar height, end range and vertical beam angle
  • Significant worldwide coverage (based on Shuttle Radar Topography Mission data)
  • Configurable target heights-of-interest using different colours
  • Fast update of coverage map as position or parameters are changed
  • Save display to file
  • Curvature of earth consideration
  • Adjustable brightness and contrast of map and radar coverage
  • Metric or nautical units
Docs
Cambridge Pixel Product Summary Brochure
Images
Radar Solution

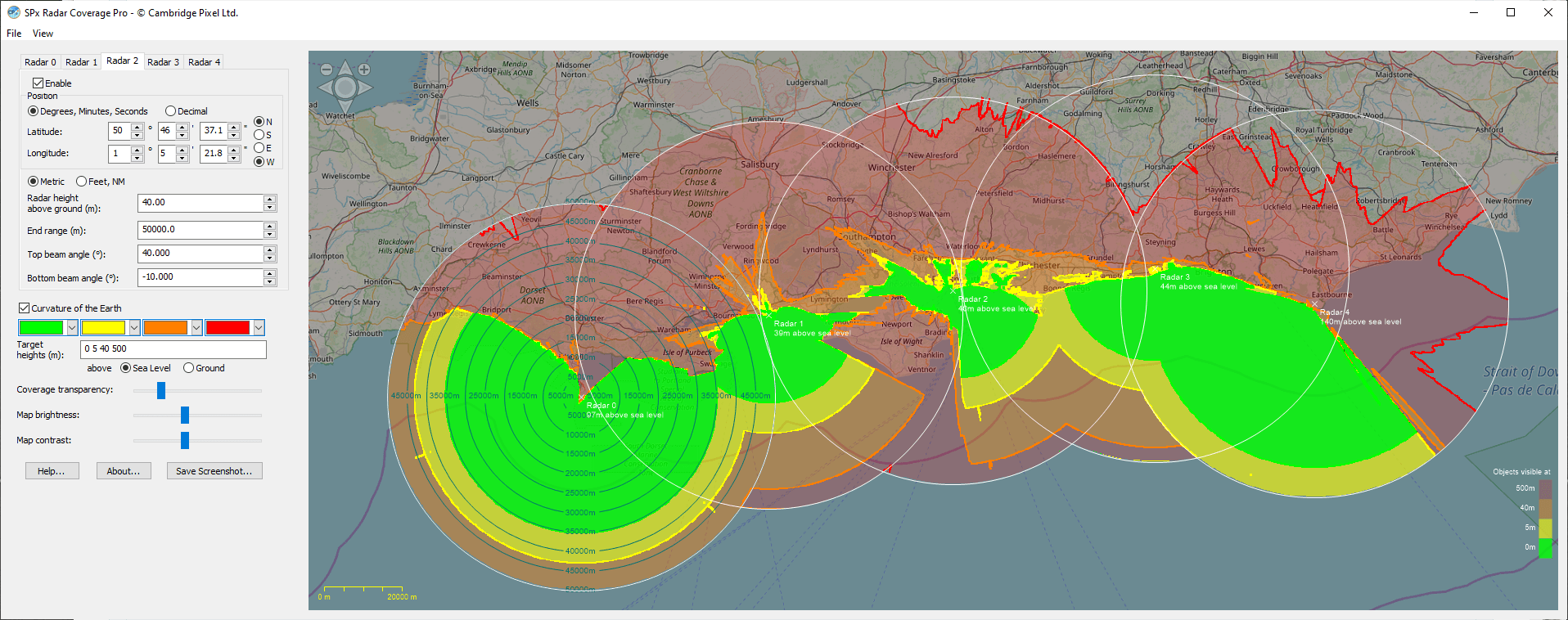

Radar Coverage Tool Pro
Radar Solution

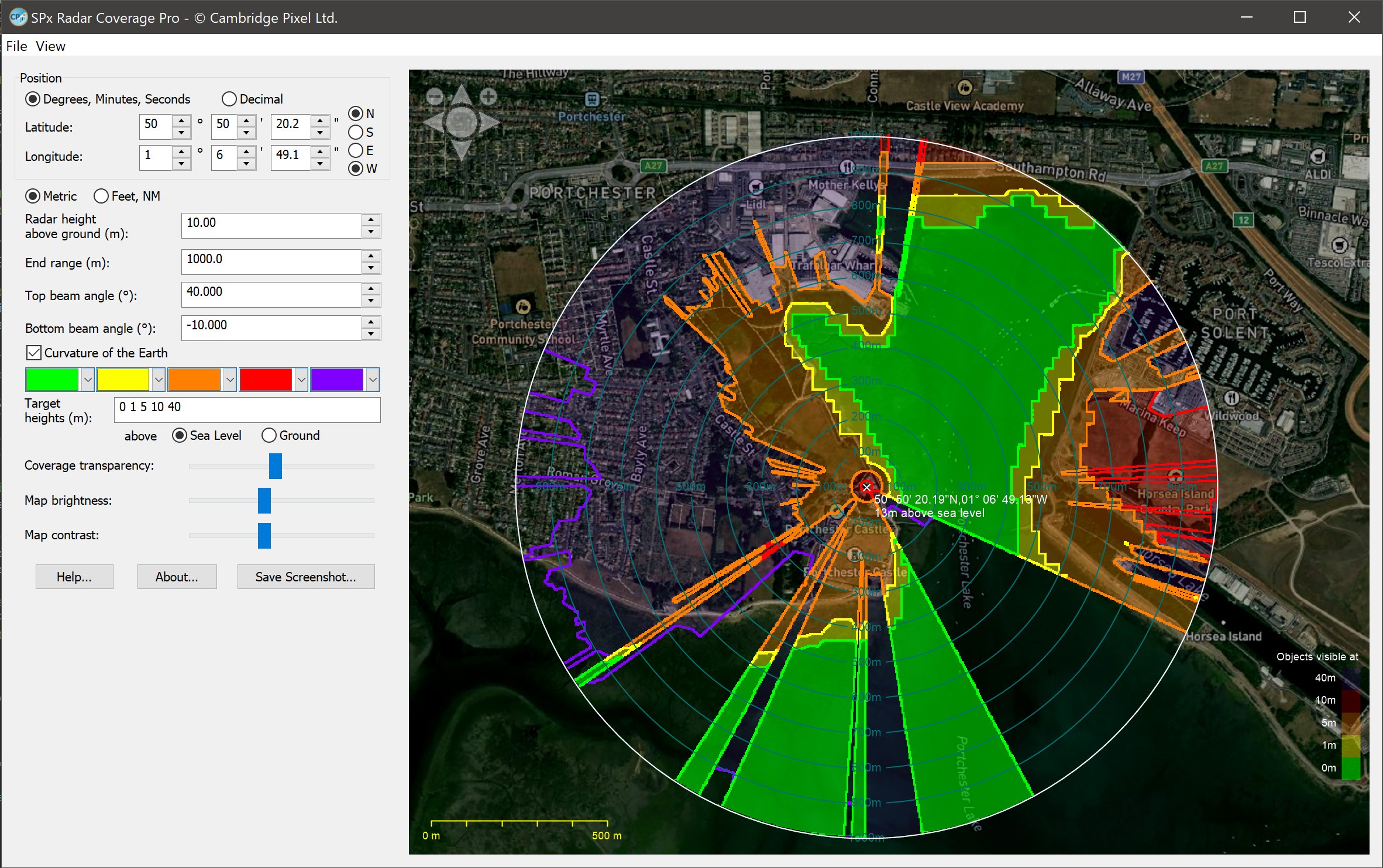

Radar coverage with the effect from simulated buildings added using a shapefile based on open street map data.
